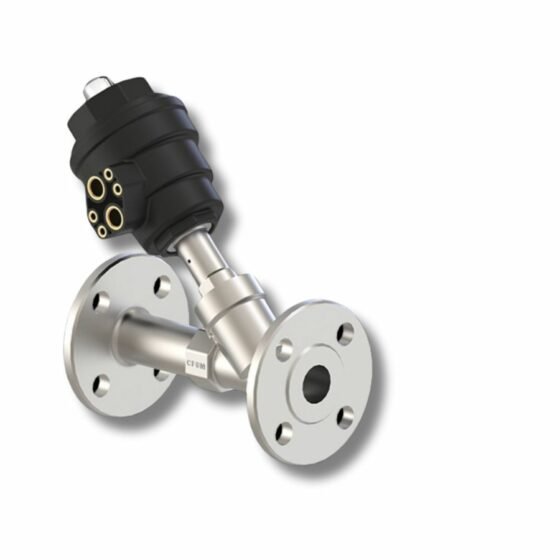

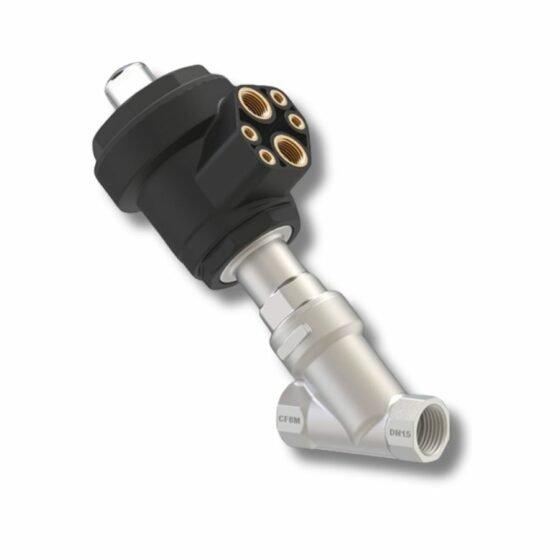

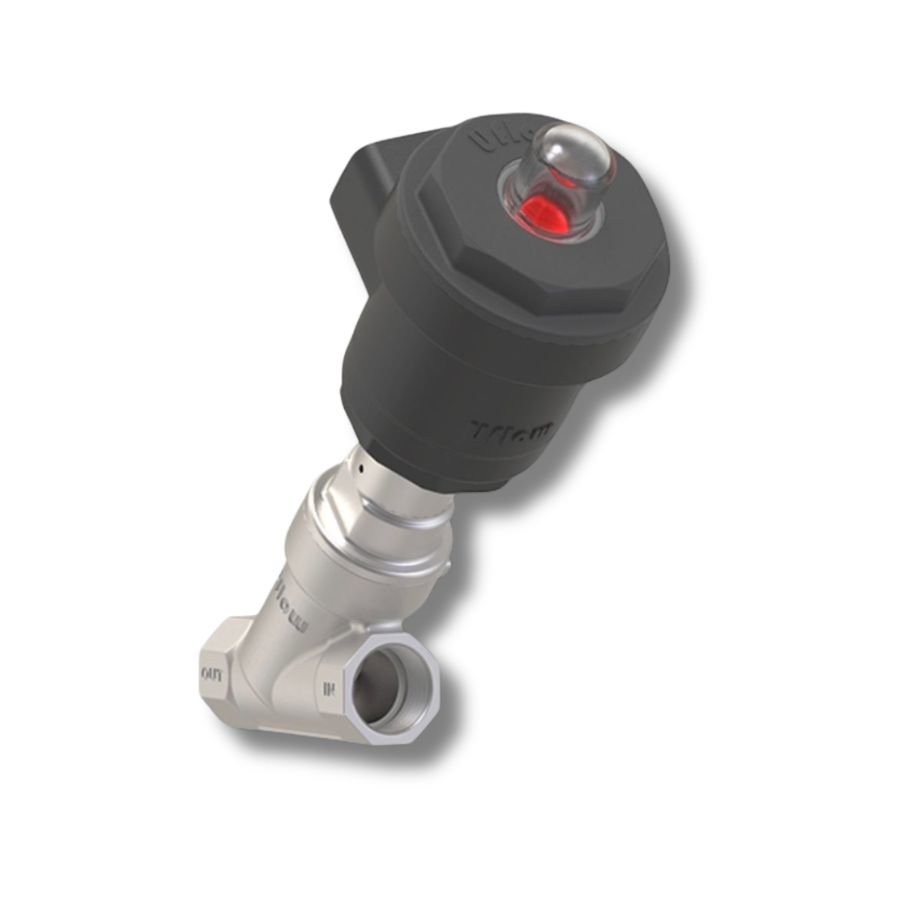

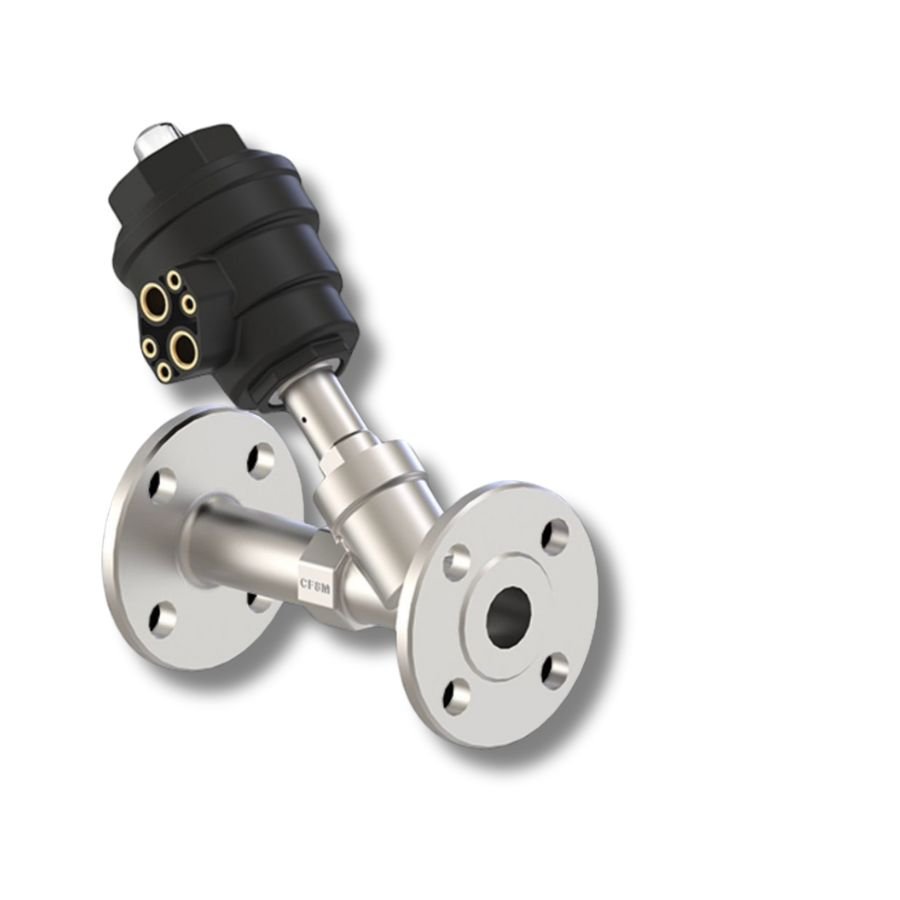

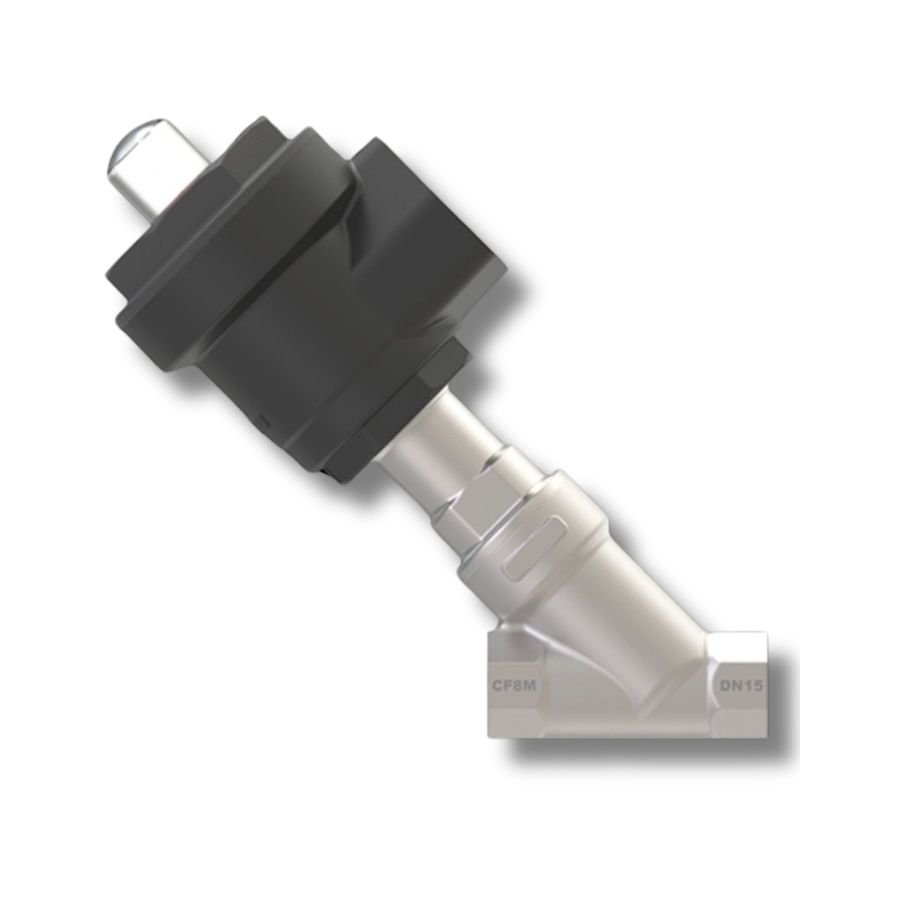

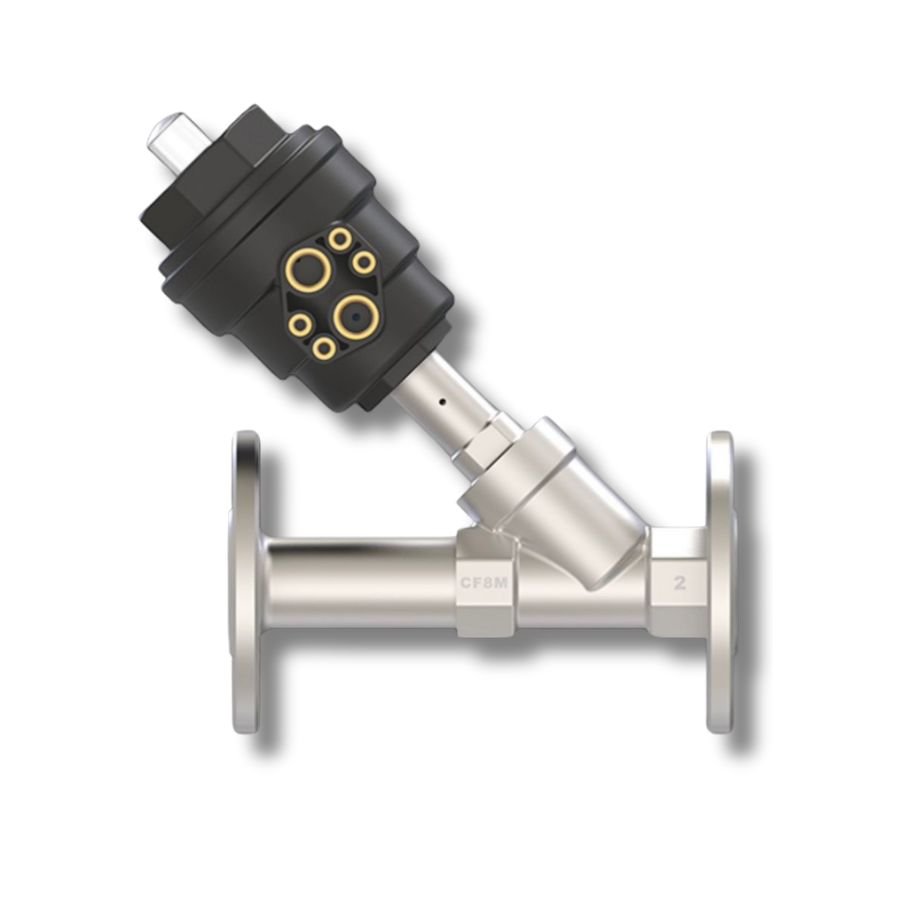

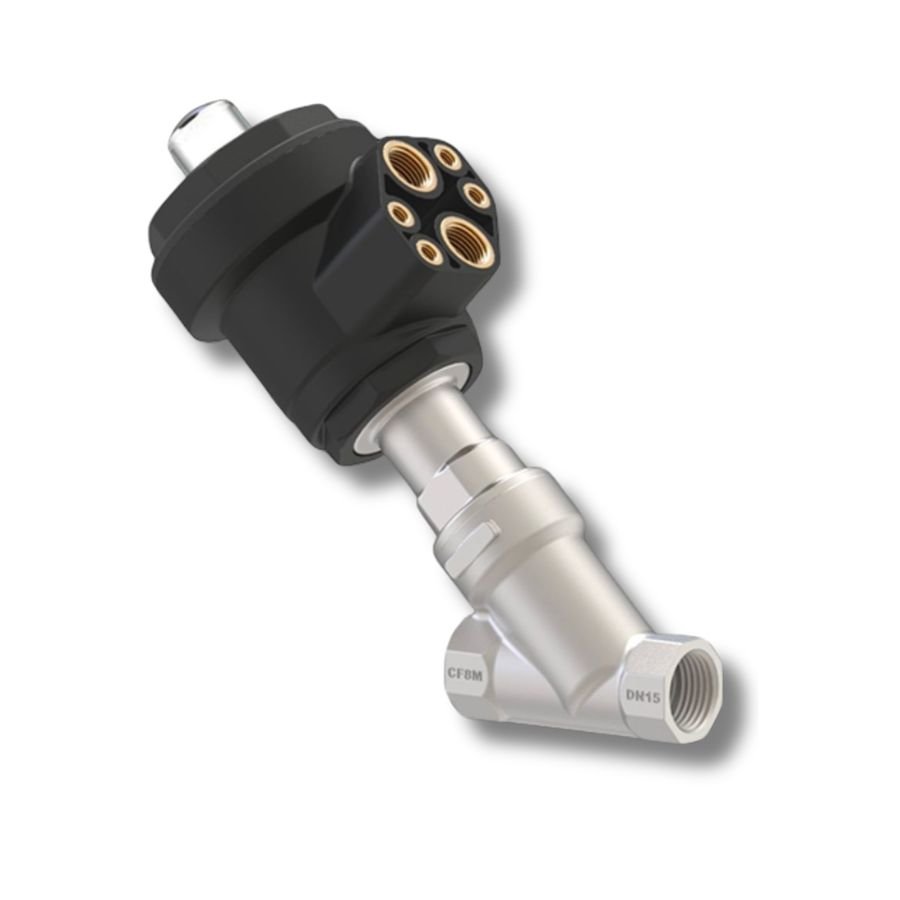

Angle Seat Valve with Plastic Actuator Operated NC/NO/Double Acting
₹0.00
Angle Seat Valve with Plastic Actuator
Enhance your industrial processes with our high-performance Angle Seat Valve, expertly engineered for reliability and efficiency. Designed to meet diverse application needs, this valve offers versatile configurations and robust materials to ensure optimal performance in various environments.
Key Features
Valve Configuration
- Operation Types: Normally Closed (NC), Normally Open (NO), Double Acting
- Port Sizes: Available in ½”, ¾”, 1″, 1¼*, 1½”, and 2″ (BSP/NPT)
End Connections
- Options: Screwed, Flange, Tri-Clamp, Socket Weld
- Versatility: Compatible with a wide range of piping systems
Construction Materials
- Body: Stainless Steel ASTM A351 Grades CF8, CF8M, CF3M for superior strength and corrosion resistance
- Shaft: High-grade SS304 or SS316 for durability
- Seal Options: PTFE, PEEK, VITON to handle various media and conditions
Temperature and Pressure
- Circumstance Temperature: -10°C to 70°C
- Media Temperature: -10°C to 180°C
- Working Pressure: Refer to our detailed Pressure Chart Table
Actuator Specifications
- Cover: Nylon Glass-Filled with SS Liner for enhanced corrosion resistance
- Plate Material: NBR or VITON for reliable sealing
- Lifecycle: Tested for up to three million cycles ensuring long-term performance
Additional Features
- Customization: Adjustable Stroke Limiter and Position Sensor available upon request
- Technical Support: Comprehensive technical data available on request
