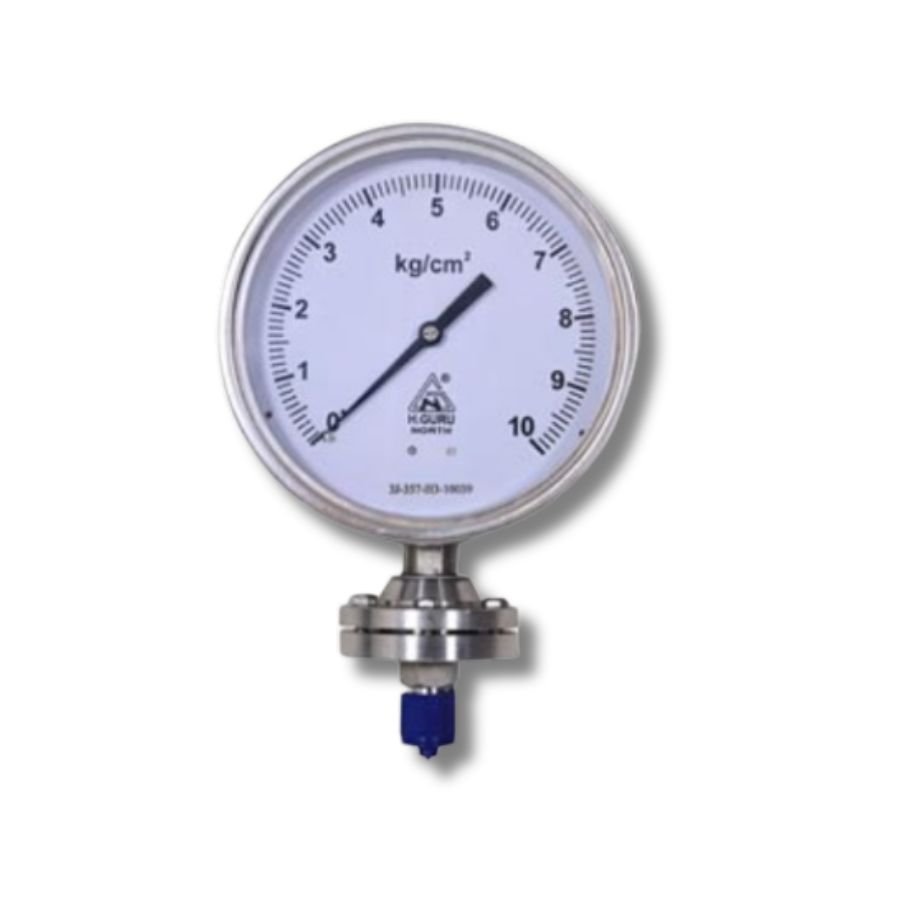

H Guru Diaphragm Seal Pressure Gauge

Precision and Reliability

Experience top-notch accuracy with the H Guru Diaphragm Seal Pressure Gauge, designed to meet the most demanding industrial applications. Compliant with IS 3624 standards, this pressure gauge ensures reliability, performance, and longevity. Perfect for measuring pressure in critical environments with robust components built from stainless steel.

Key Features

• Dial Sizes: Available in 100 mm and 150 mm for better visibility.
• Accuracy: High precision with ±1% error margin.
• Sensing Element: Bourdon tube made from durable SS 316L.
• Connection Material: SS 316, offering excellent corrosion resistance.
• Gear Mechanism: Built with SS 304 to ensure smooth operation.
• Diaphragm Protection: Made from SS 316L with optional Teflon coating or Teflon lining.
• Weatherproof: IP-67 protection as per IS/IEC 60947 Part I, safeguarding against harsh environments.
• Case and Bezel: Comes with a SS 304 case and bayonet bezel as standard, with SS 316 or aluminum options available.
• Chambers: Top chamber constructed from SS 304, and bottom chamber from SS 316.
• Process Connection: Available in 3/8″, 1/2″ BSP & NPT Male, M 20 X 1.5, and flange connections.
• Window Options: Plain, toughened, or shatterproof glass for safety and durability.
• Temperature Range: Works efficiently between -20°C to +60°C.
• Over Range Protection: Up to 130% FSD (Full Scale Deflection) for increased safety.

Optional Features and Accessories

• Fluid Filling: Available with Silicone Oil for smooth readings, with optional Glycerine filling for vibration damping.
• Electrical Contact Option: Facilitates electrical output for automation and alarms.
• Mounting Options: Direct bottom/back entry, surface bottom entry, and panel back entry.
• Accessories: Includes Syphon, Gauge Cock, Snubber, Needle Valve, and Valve Manifold for enhanced operation.

Authorized Dealer – V.S. Machinery & Spares, Delhi

Purchase this premium H Guru Brand Diaphragm Seal Pressure Gauge from V.S. Machinery & Spares, a trusted supplier for over 50 years. We are committed to delivering 100% customer satisfaction across India with a variety of pressure gauges, switches, valves, and process control instruments.

Tap the “Get Quote via WhatsApp” button on this product page for a quick and personalized quote!
