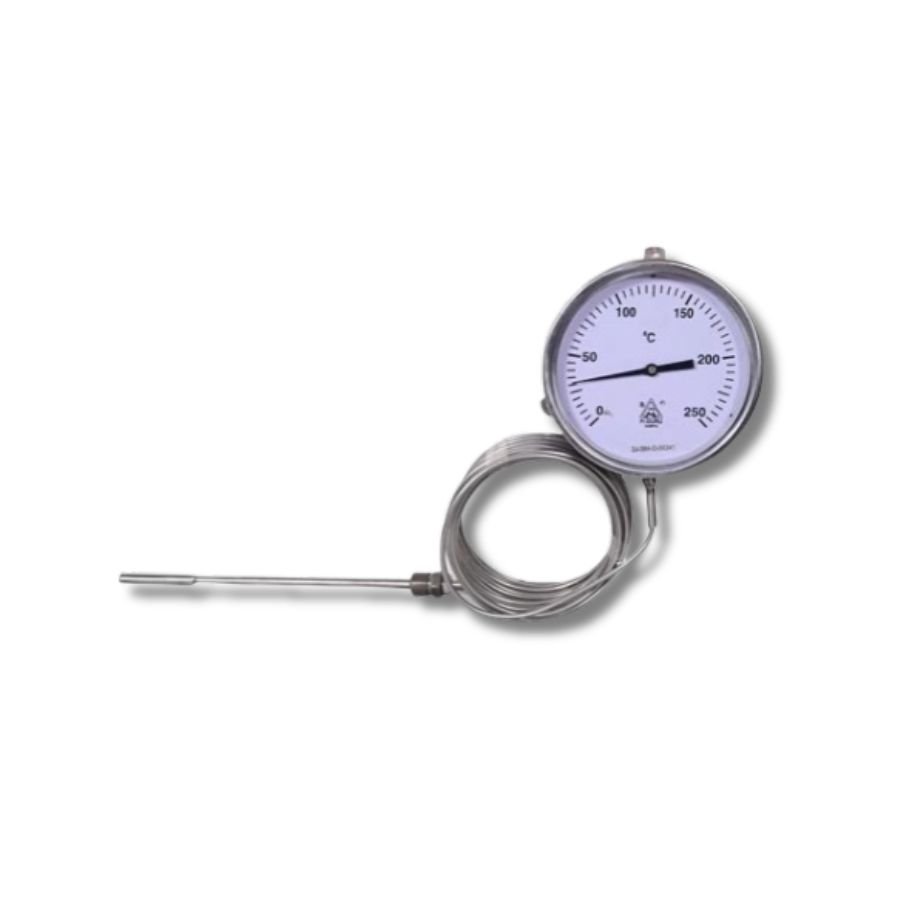

H Guru Mercury In Steel Distance Type Temperature Gauge
₹0.00
Elevate your industrial temperature monitoring with the H Guru Mercury In Steel Distance Type Temperature Gauge, engineered for precision, durability, and reliability. Perfectly suited for a wide range of applications, this temperature gauge meets the highest industry standards and ensures optimal performance in demanding environments.
Key Features
- Compliance & Standards
- Reference Standard: EN 13190 ensures adherence to European norms for temperature gauges, guaranteeing quality and safety.
- Precision Engineering
- Accuracy: Maintains an impressive ±1% accuracy for precise temperature measurements.
- Bourdon Tube: Crafted from SS 316L for superior strength and corrosion resistance.
- Gear Mechanism: Utilizes SS 304 for reliable and smooth operation.
- Robust Construction
- Case Material: Available in SS 304 with a Bayonet Bezel as standard, with SS 316 and die-cast aluminum options for enhanced durability.
- Protection Rating: Weatherproof to IP-67 (IS/IEC 60947 Part I), ensuring protection against dust and water ingress.
- Versatile Connectivity
- Process Connection: Compatible with 3/8, 1/2 BSP & NPT Male threads. Adjustable length up to 300 mm with M 20 X 1.5 fittings.
- Clear Visibility
- Dial: Features an aluminum white background with black letters for easy reading.
- Pointer: Equipped with a micrometer zero adjustable black aluminum pointer for precise indication.
- Flexible Installation
- Mounting Options: Supports projection or surface mounting with bottom or panel back entry, providing versatility in installation.
- Extended Range & Options
- Over Range: 130% of Full Scale Deflection (FSD) to accommodate unexpected temperature spikes.
- Optional Features: Available with glycerine filling and electric contact for enhanced functionality.
- Additional Accessories
- Thermowell: Ensures accurate temperature measurement without direct exposure to the process media.
Specifications
- Dial Size: 100 mm / 150 mm
- Capillary: SS 304 sheath standard, with SS 304 armour & PVC cover optional
- Capillary Length: Standard 3 meters, extendable up to 30 meters
- Bulb/Stem Diameter: 12/9, 10/9 & 8/8
- Bulb/Stem Material: SS 316
- Window Options: Plain, toughened, or shatter-proof glass
Why Choose V.S. Machinery?
With over 50 years of experience, V.S. Machinery is a trusted name in Delhi and across India for supplying top-quality temperature gauges, industrial valves, pressure gauges, boiler mountings, and process control instruments. Our commitment to 100% customer satisfaction ensures you receive reliable products tailored to your industrial needs.
Get Your Quote Today!
Ready to enhance your industrial processes with the H Guru Mercury In Steel Distance Type Temperature Gauge? Simply tap the “Get Quote Via WhatsApp” button on this product page for a quick and personalized quote.
