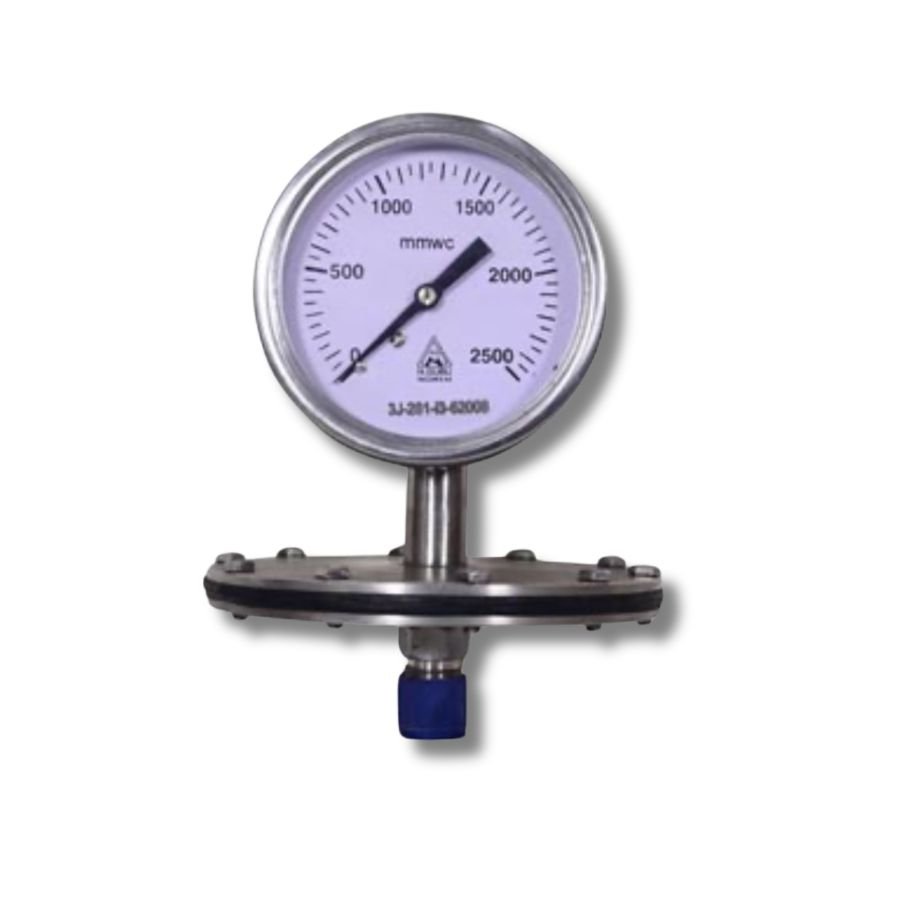

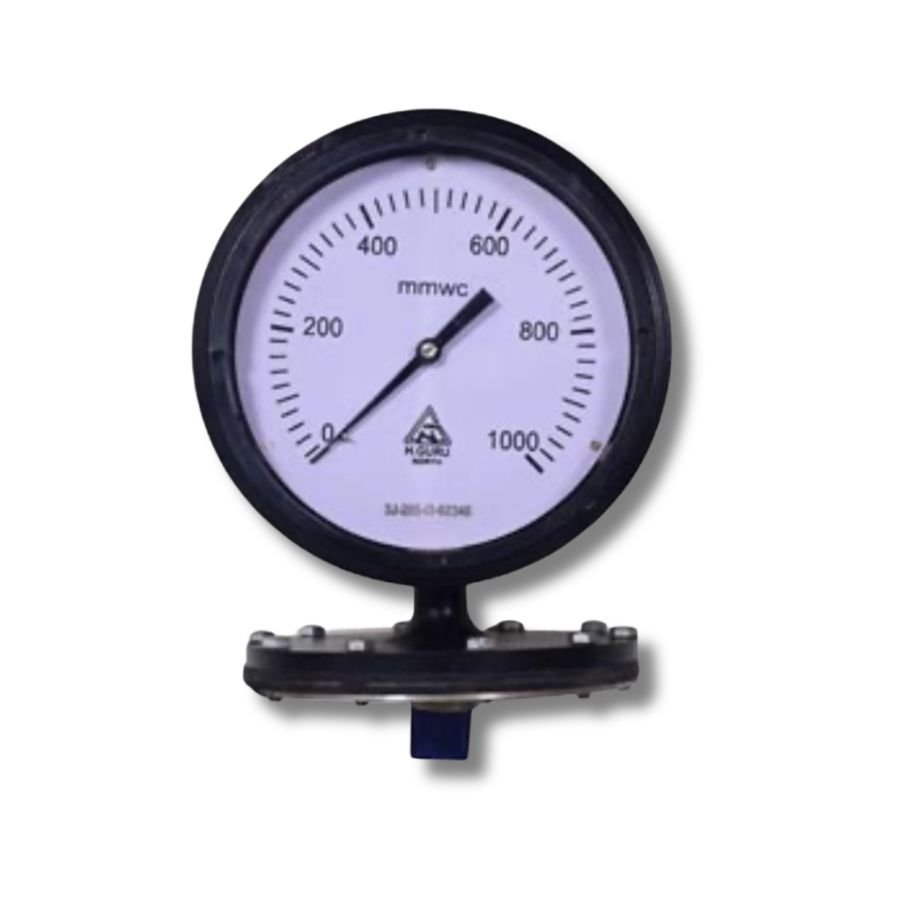

H Guru Schaffer Diaphragm Pressure Gauge
₹0.00
Experience precision and reliability with the H Guru Schaffer Diaphragm Pressure Gauge, engineered to meet the highest industry standards. Perfectly suited for a wide range of industrial applications, this pressure gauge ensures accurate measurements and long-lasting performance.
Key Features
- Standard Compliance: Meets IS 3624 standards, ensuring quality and reliability.
- Dial Sizes: Available in 100 mm and 150 mm, catering to various installation needs.
- High Accuracy: ± 1.5% accuracy for precise pressure readings.
Specifications
- Connection Material: Crafted from durable SS 316 for robust performance.
- Gear Mechanism: Features a non-ferrous gear mechanism, enhancing longevity.
- Sensing Element: Made with SS 316L alloy steel diaphragm for optimal sensitivity.
- Case Construction: Options include SS 304 with a bayonet bezel (SS 316 optional) and die-cast aluminum, providing versatility based on application requirements.
Durability and Protection
- Weatherproof Design: Rated IP-67 (IS/IEC 60947 Part I), ensuring protection against dust and water ingress.
- Temperature Range: Operates efficiently between -20°C to +60°C, suitable for diverse environments.
Connectivity
- Process Connections: Available in 3/8″, 1/2″, BSP & NPT Male, M 20 X 1.5, facilitating easy integration into existing systems.
- Mounting: Direct bottom entry for straightforward installation.
Display and Accuracy
- Dial: Features an aluminum white background with clear black letters for easy readability.
- Pointer: Equipped with a micrometer zero-adjustable black aluminum pointer for precise measurement.
- Window: Constructed with toughened, shatter-proof I glass, ensuring durability and safety.
Accessories

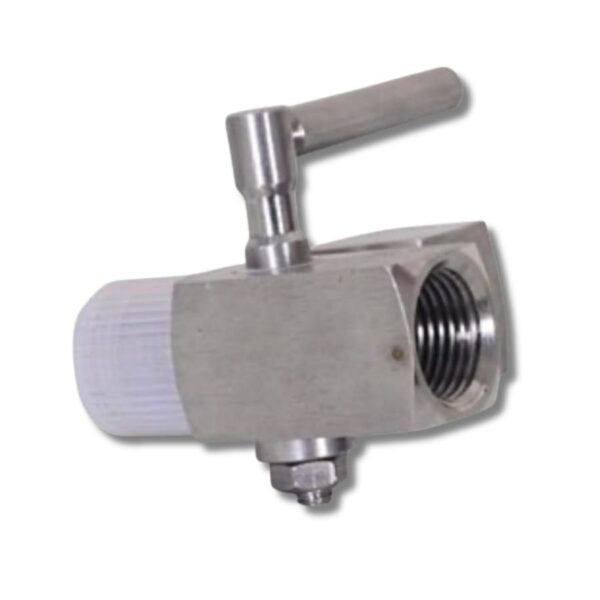

Enhance functionality with a range of accessories including syphons, gauge cocks, snubbers, needle valves, and valve manifolds, tailored to meet your specific needs.
Availability
Proudly available at V.S.Machinery & Spares, Delhi. As authorized dealers of H Guru Brand Pressure Gauges, we supply pressure switches, solenoid valves, temperature gauges, industrial valves, boiler mountings, and process control instruments. With 50 years of experience serving industries across India, we guarantee 100% customer satisfaction. Click “Get Quote Via WhatsApp” on this product page for a quick and easy quote.
