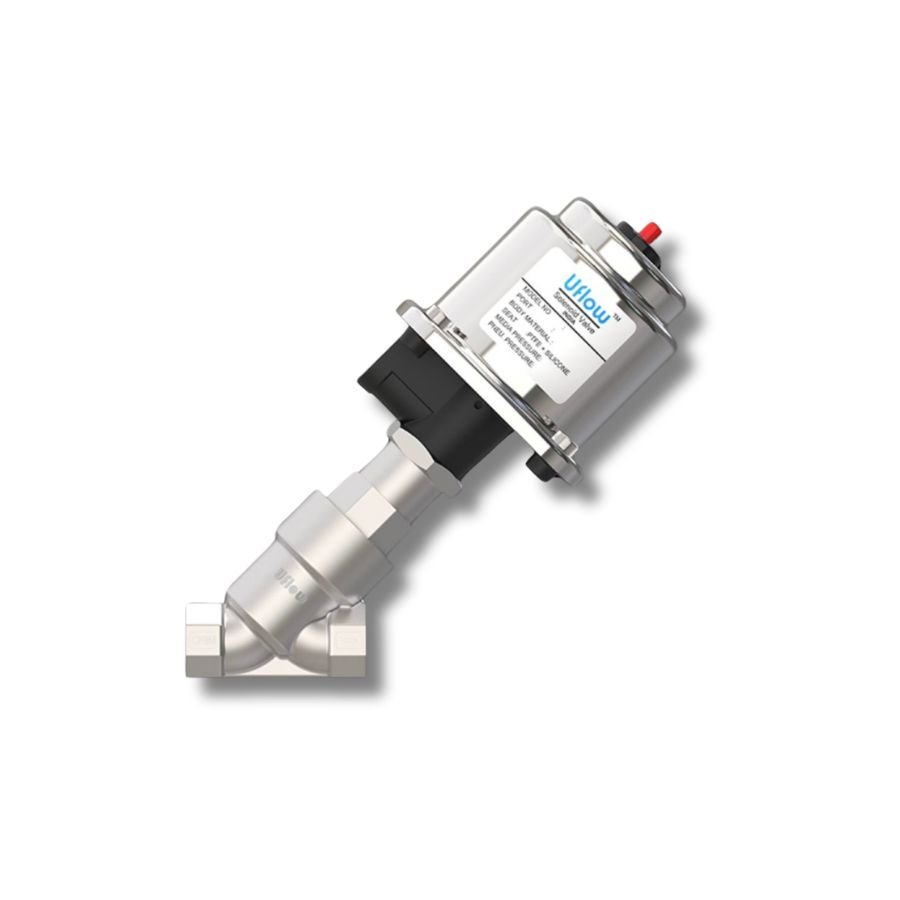

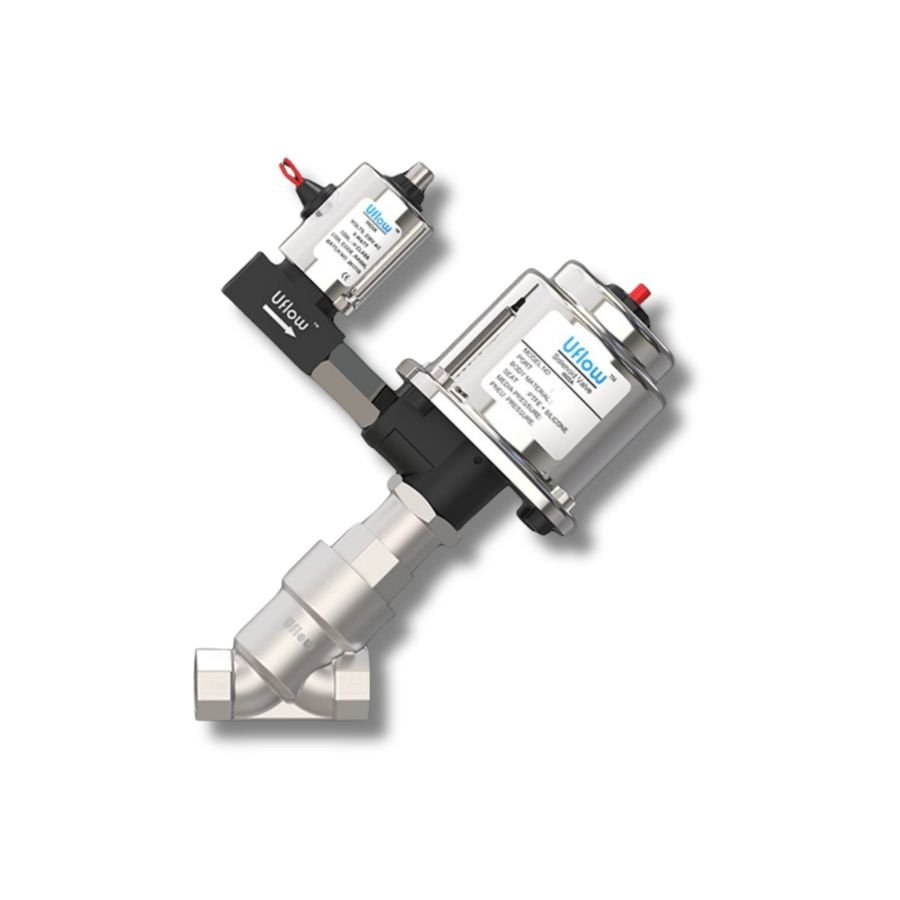

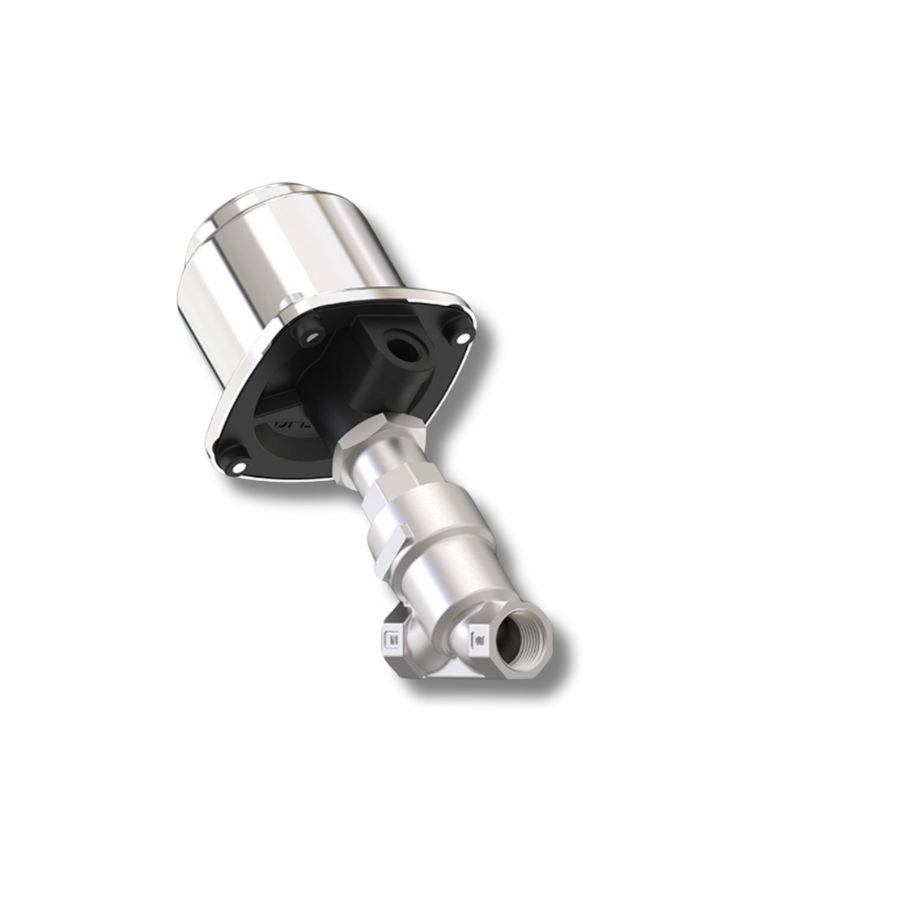

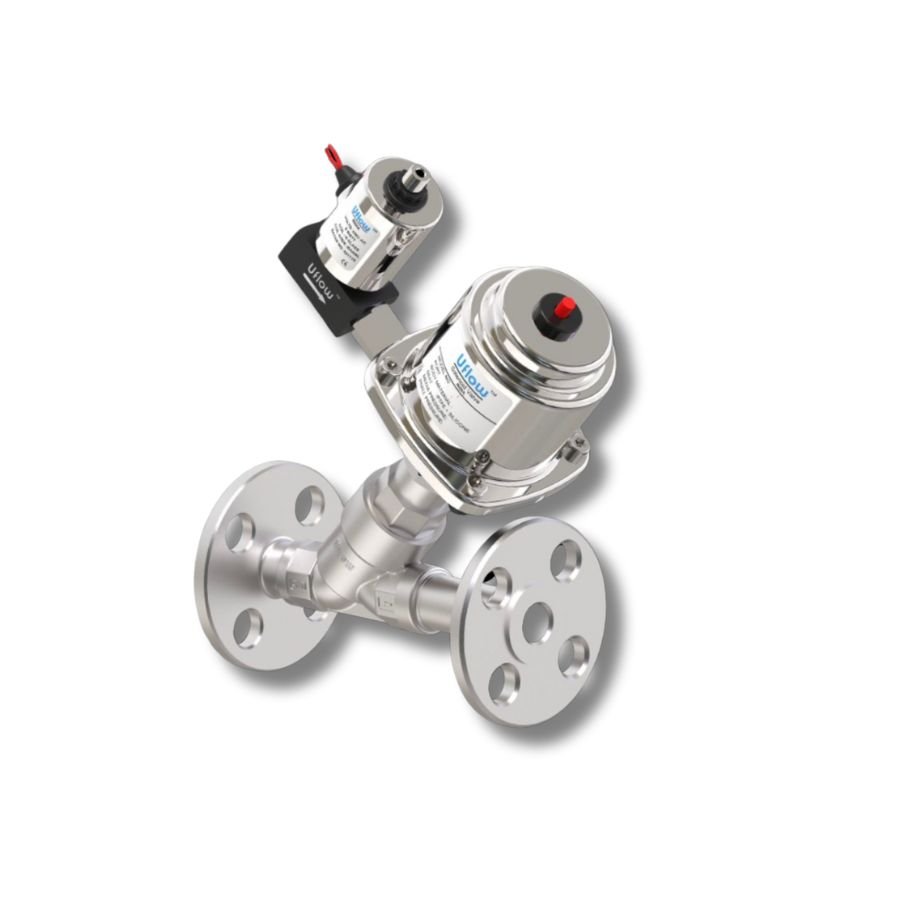

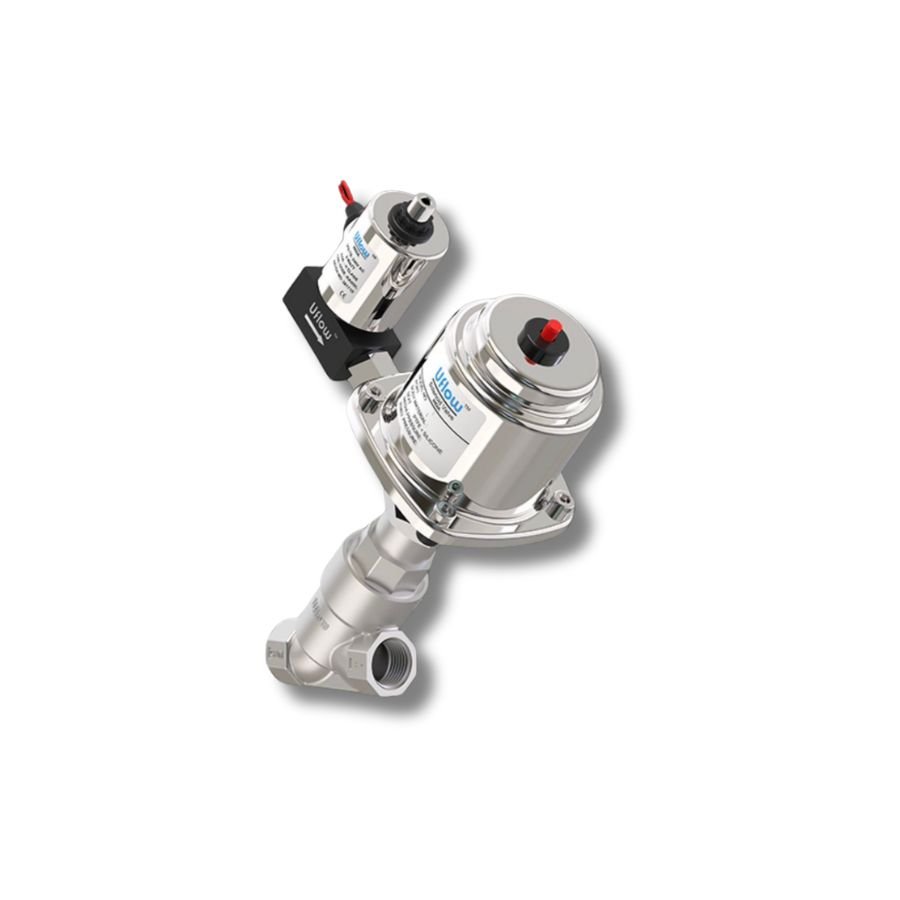

Uflow Angle Seat Valve with Steel Actuator Operator NC-NO
₹0.00
Introducing the Uflow Angle Seat Valve with Steel Actuator Operator NC-NO, a pinnacle of reliability and performance for your industrial applications. Designed to meet stringent standards, this valve ensures seamless control over various media, providing durability and efficiency in every operation.
Valve Specifications
- Port Sizes: ½”, ¾”, 1″, 1¼”, 1½”, & 2″ (Available in BSP/NPT)
- End Connections: Screwed, Flange, Tri-Clamp, Socket Weld
- Body Material: Stainless Steel ASTM A351 Grade CF8 / CF8M / CF3M
- Seal Options: PTFE, VITON
- Operating Temperature:
- Circumstance: -10°C to 70°C
- Media: -10°C to 180°C
- Compatible Media: Steam, Air, Water, Chemicals, Gases, Oil, Diesel, Hot Water
Actuator Details
- Cover Material: SS304 Stainless Steel
- Plate Material: Aluminum Die-Cast
- Working Pressure: 3.5 to 7 bar air (Note: Not recommended for pneumatic pressure above 7 bar)
- Longevity: Exceeds ten million cycles
- Seal Materials: NBR, VITON
- Additional Technical Data: Available upon request
Applications
The Uflow Angle Seat Valve is versatile, making it ideal for a wide range of industrial applications including:
- Boiler Systems
- Chemical Processing
- Oil & Gas Pipelines
- Water Treatment Plants
- Automotive Manufacturing
- Food & Beverage Industry
Why Choose Uflow Angle Seat Valve
- High-Quality Materials: Constructed from premium stainless steel ensuring longevity and resistance to corrosion.
- Versatile Connectivity: Multiple end connection options for easy integration into existing systems.
- Superior Sealing: Choice of PTFE or VITON seals provides excellent leak prevention and durability.
- Robust Actuator: Steel actuator with a life expectancy of over ten million cycles guarantees reliable performance.
Available at V.S. Machinery & Stores
For over 50 years, V.S. Machinery & Stores in Delhi has been the trusted supplier of temperature gauges, industrial valves, pressure gauges, boiler mountings, and process control instruments across India. We pride ourselves on 100% customer satisfaction and unwavering quality.
Get a Quick Quote
Ready to enhance your industrial setup with the Uflow Angle Seat Valve? Simply tap the “Get Quote Via WhatsApp” button right from this product page for a swift and personalized quotation.
