WJ Cast Iron Spring Loaded Safety Valve Single post and Double Post
₹0.00

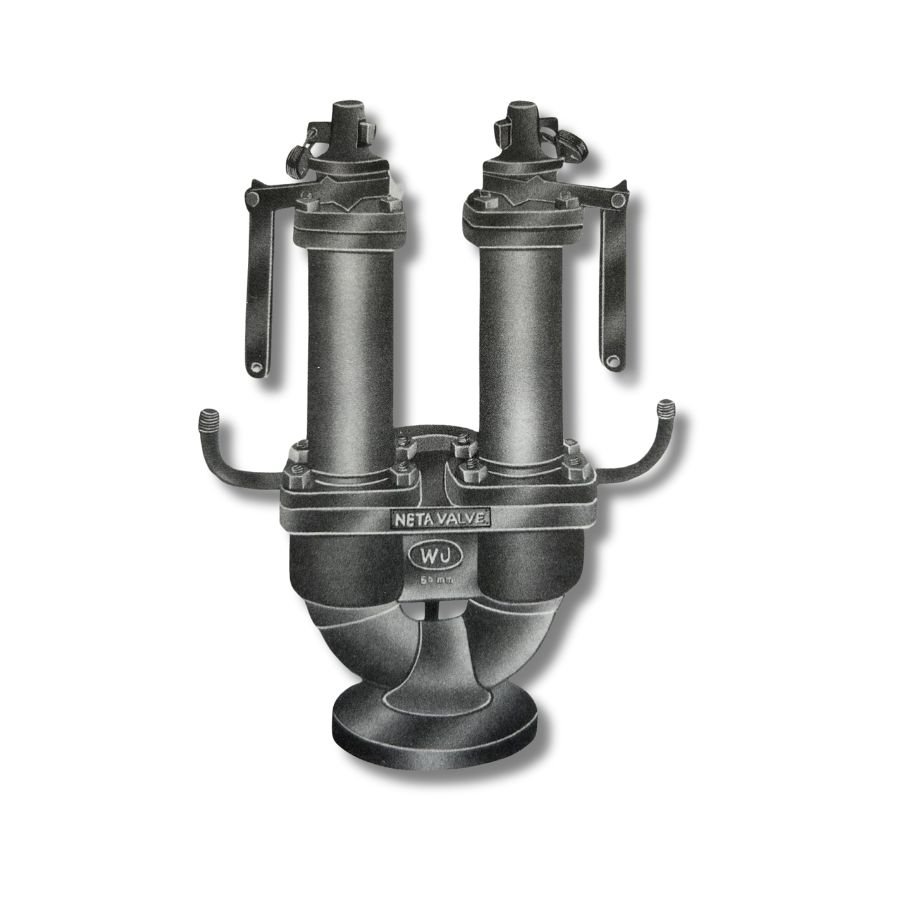

WJ Cast Iron Spring Loaded Safety Valve
Ensure the utmost safety and reliability in your industrial applications with the WJ Cast Iron Spring Loaded Safety Valve. Available in both single post and double post configurations, these valves are engineered to deliver exceptional performance and durability.
Superior Construction
Crafted from high-quality cast iron, the WJ Safety Valves feature a 13% Chromium Stainless Steel (AISI-410) seat and stem. This robust construction ensures longevity and resistance to wear, making them ideal for demanding environments.
Versatile Design Options
Whether you need a single post or double post configuration, WJ Safety Valves offer flexibility to suit your specific requirements. The full lift design ensures complete valve operation, providing reliable pressure release every time.
Optimal Pressure Settings
Designed to operate at a maximum pressure of 150 PSIG (10.54 Kg/Cm²), these safety valves are perfect for maintaining safe pressure levels in your systems. The precise pressure settings help prevent over-pressurization, safeguarding your equipment and personnel.
Key Features
- Instantaneous Full Lift: Achieves immediate full lift to the seat, ensuring rapid pressure release during critical situations.
- Easing Lever: Each valve is equipped with an easing lever for easy operation and maintenance.
- Secure Pressure Adjustment: The adjusting screw and check nut are connected by a cap, secured with a cotter and padlock to prevent unauthorized modifications to the set pressure.
Rigorous Testing and Certification
WJ Safety Valves undergo comprehensive testing to guarantee their performance and safety:
- Hydraulic Testing: Each valve body is tested at 300 PSIG (21.08 Kg/Cm²) to ensure structural integrity.
- Steam Pressure Setting: Valves are set to a maximum steam pressure of 150 PSIG (10.54 Kg/Cm²).
- Certification: Supplied with an IBR Test Certificate in Form III-C, issued by The Director of Boilers, Punjab, ensuring compliance with industry standards.
Trusted Availability
Available exclusively at V.S. Machinery & Spares, Delhi, the authorized dealers of WJ IBR Valves. With over 50 years of experience, we supply pressure switches, solenoid valves, temperature gauges, industrial valves, boiler mountings, and process control instruments to industries across India, guaranteeing 100% customer satisfaction.
Get Started Today! Tap the “Get Quote Via WhatsApp” button on this product page to receive a quick and personalized quote.
