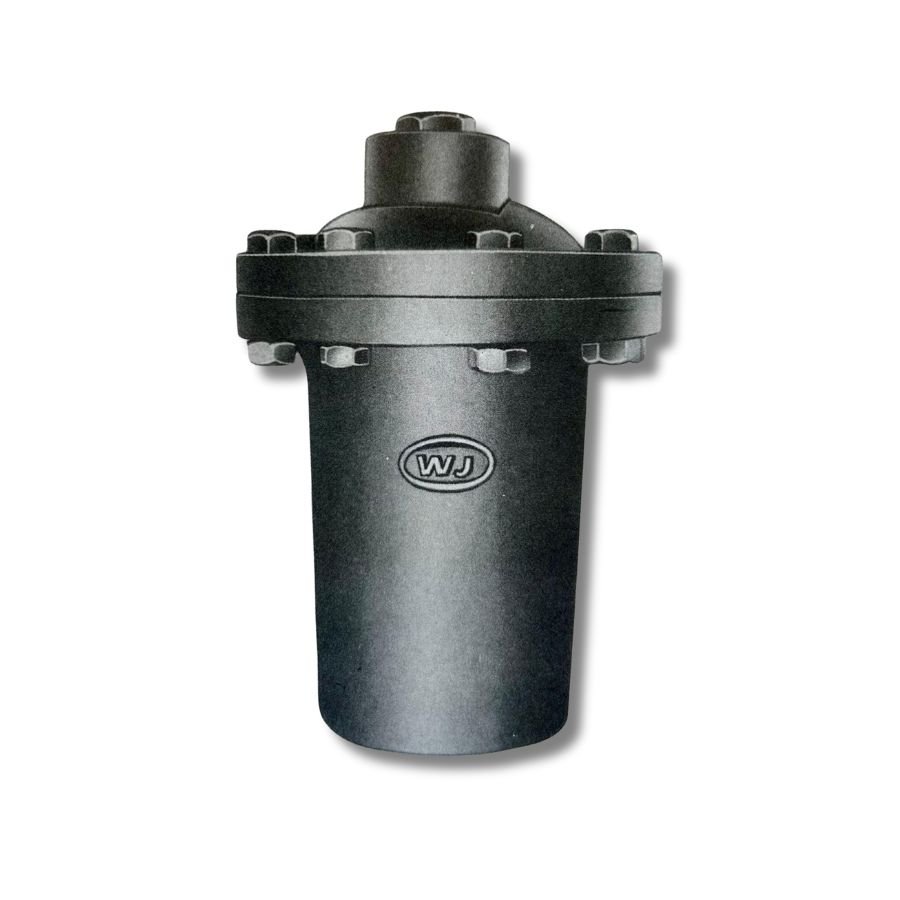

WJ cast iron Vertical Inverted Bucket Type Steam Trap
₹0.00
WJ Cast Iron Vertical Inverted Bucket Type Steam Trap
Features
- Material: Brass/S.S. (AISI-304) bucket with screwed female ends
- Working Pressure: Maximum 185 PSIG (13 Kg/Cmg)
- Operating Temperature: 428°F (220°C)
- Hydraulic Pressure Testing: Body tested to 370 PSIG (26 Kg/Cmg)
Discharge Capacities
Discharge capacities of Steam Traps under various steam pressures are provided in Kg/hour of hot condensate at temperatures corresponding to the inlet steam pressure.
Testing and Certification
- Hydraulic Testing: Each trap is tested hydraulically at double the maximum working pressure.
- Performance Testing: Tested on steam lines to ensure optimal performance.
- Certification: Supplied with IBR Test Certificate in Form III-C issued by The Director of Boilers, Punjab.
Availability
Available at V.S. Machinery & Spares, Delhi. We are authorized dealers of WJ IBR Valves, Pressure Switches, Solenoid Valves, Temperature Gauges, Industrial Valves, Pressure Gauges, Boiler Mountings, and Process Control Instruments. Serving industries across India for the past 50 years with 100% customer satisfaction.
