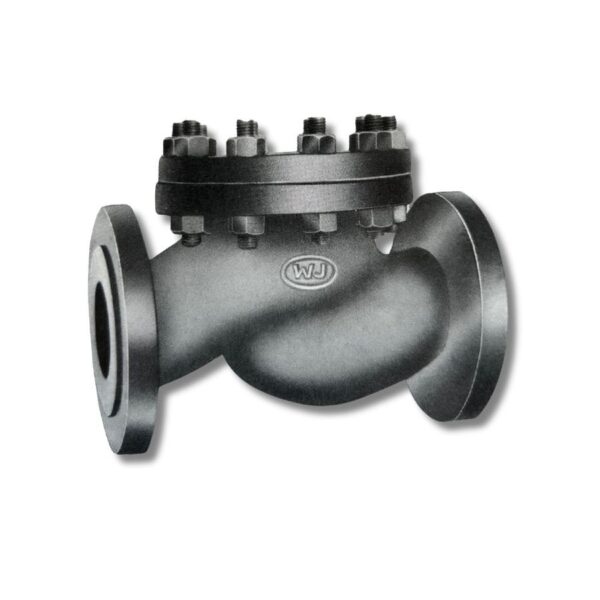

WJ Cast Steel Horizontal Lift Check Valve
₹0.00
The WJ Cast Steel Horizontal Lift Check Valve is designed for high-performance industrial applications, ensuring superior reliability and precision. Engineered to meet BS-5160/DIN 2401 standards with PN-40 pressure ratings, this valve is available in straight or right-angle patterns to fit diverse system configurations. Built with 13% chromium stainless steel (AISI-410) trim and featuring a bolted bonnet with integral flanges in compliance with BS-4504 Part | Table 40/1/DIN 2545 PN-40 Raised Face standards, this lift check valve promises optimal sealing and longevity.
Key Features
- Minimized Pressure Drop:
A streamlined full flow area ensures minimal pressure loss across the valve body, improving system efficiency. - Durable Body Seat Ring:
The renewable 13% Cr stainless steel body seat ring and disc facing ring maintain a hardness difference of at least 50 HB, ensuring prolonged wear resistance. - Secure Bolted Bonnet Design:
A bolted body cover joint ensures easy maintenance while providing robust sealing under high pressures. - Self-Aligning Disc:
The fully guided disc ensures precise alignment and proper seating, enhancing the valve’s ability to prevent reverse flow.
Rigorous Testing and Certification
Every valve undergoes stringent testing, with the body tested at 60 Bar Gauge and the seat at 40 Bar Gauge using hydraulic pressure. Certified under Form III-C by the Director of Boilers, Punjab, the valve guarantees adherence to the highest safety and performance standards.
Supplier Details
Available at V.S. Machinery & Spares, Delhi, an authorized dealer of WJ IBR valves. An industry leader for over 50 years, specializing in pressure switches, solenoid valves, temperature gauges, industrial valves, pressure gauges, boiler mountings, and process control instruments. Tap the “Get Quote via WhatsApp” button on this page to receive a quick quote.
