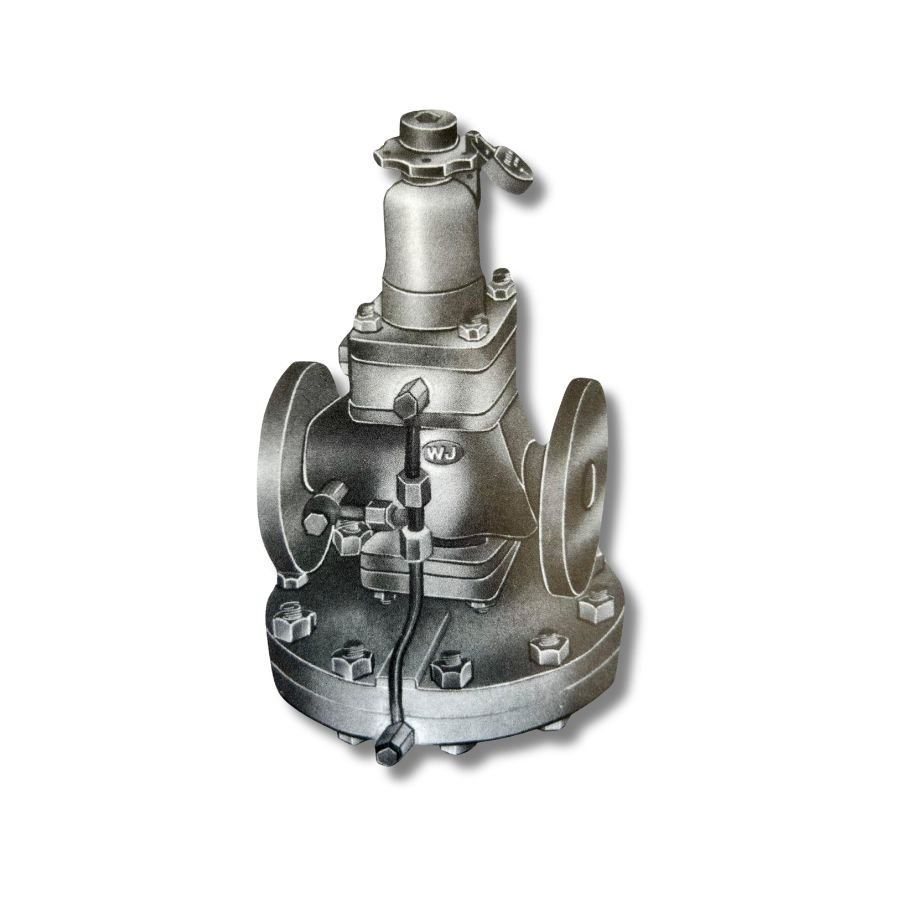

WJ Cast Steel Pilot Controlled Metallic Diaphragm Type Pressure Reducing Valve
₹0.00
Efficient Pressure Control for Industrial Applications
The WJ Cast Steel Pilot Controlled Metallic Diaphragm Type Pressure Reducing Valve is designed to regulate high-pressure steam or fluid with precision. Built with cast steel, this robust valve ensures reliable performance under extreme conditions, making it ideal for industrial processes. Its flanged ends adhere to BS-10 Table ‘L’ standards, ensuring a secure and leak-proof connection.
High Performance and Durability
This valve can operate at a maximum working pressure of 350 psig (24.6 kg/cm²) at 425°C, ensuring smooth pressure reduction even under harsh conditions. Additionally, each valve undergoes stringent hydraulic testing at 700 psig (49.2 kg/cm²), ensuring double the safety margin for your system. You can choose from three downstream pressure ranges—5/60, 20/80, and 40/125—based on your specific requirements.
Installation Guidelines for Optimal Performance
- Install the valve horizontally in the pipeline.
- Use stop valves on both the inlet and outlet sides.
- A safety valve should be placed downstream for added protection.
- Upstream installations should include a steam trap and strainer to prevent debris.
- Clean the pipeline thoroughly before installation to avoid obstructions.
Certified Quality for Industrial Reliability
All valves are supplied with IBR Test Certificates (Form III-C) from the Director of Boilers, Punjab. With V.S. Machinery & Spares’ long-standing experience of 50 years in the industry, we ensure reliable, certified solutions for your industrial control needs.
