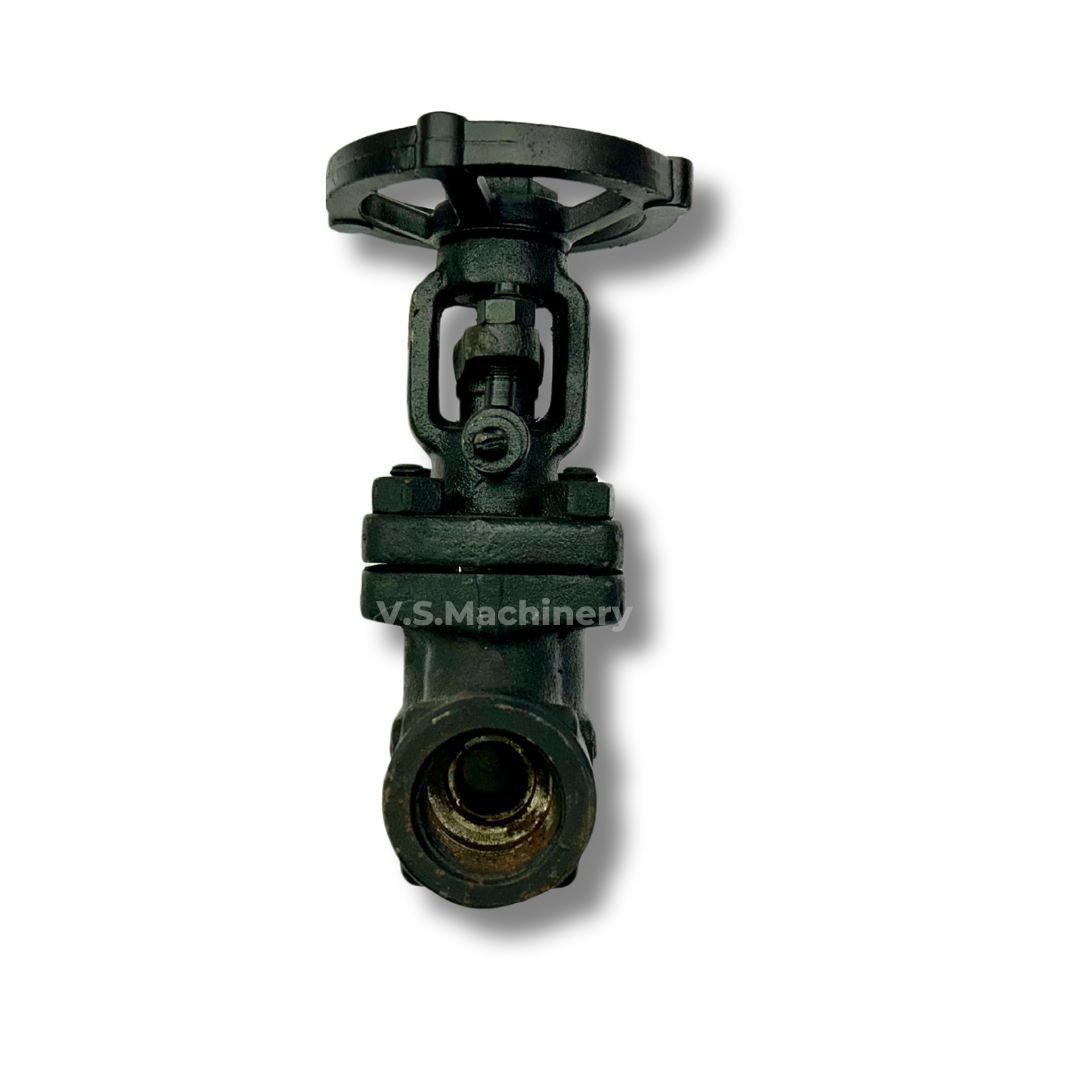

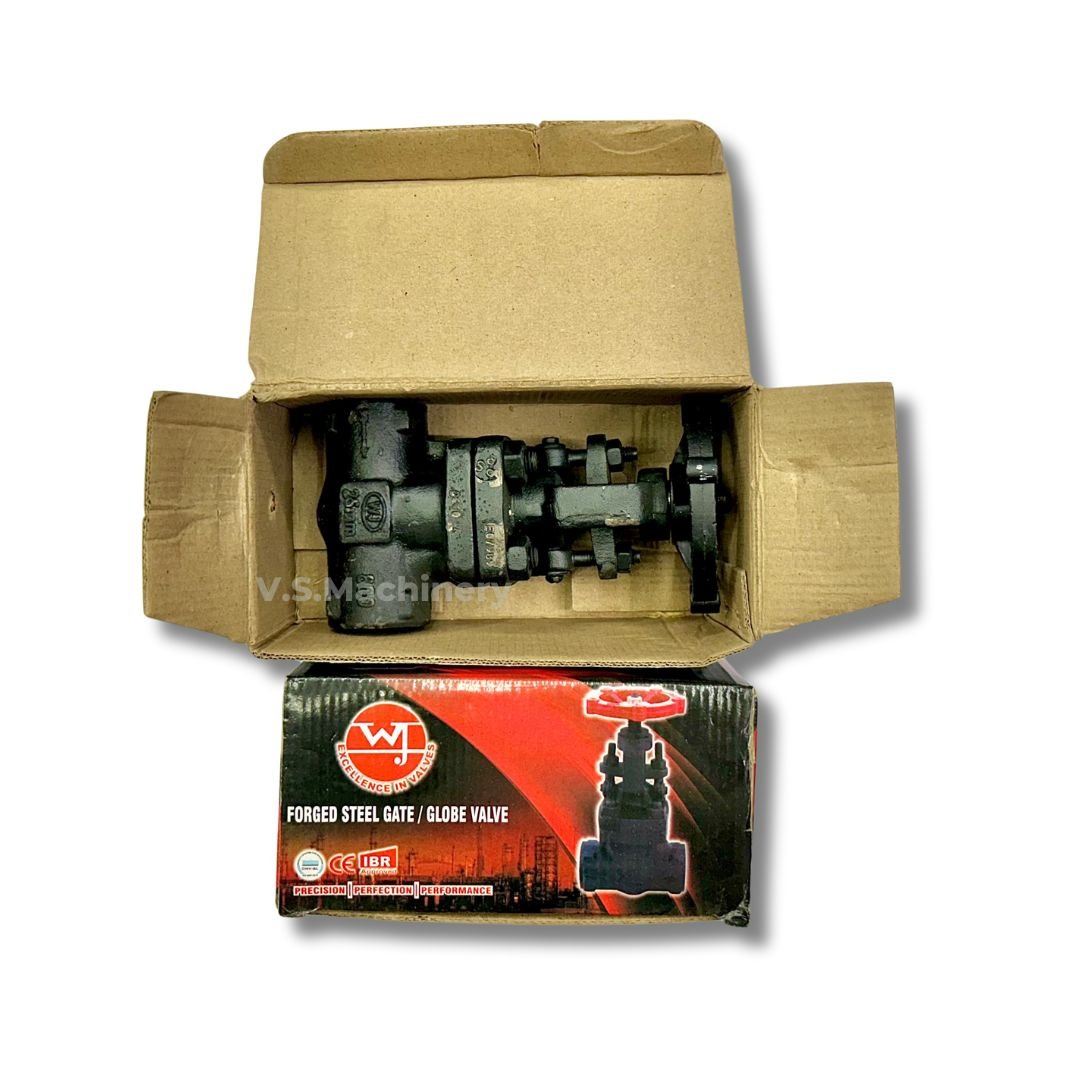

WJ IBR Forged Steel Gate Valve
₹0.00
Introducing the WJ Brand Forged Steel Gate Valve, meticulously engineered to meet the rigorous standards of BS-5352-1981 and API-602-1985 CI-800. This valve is an outside screw and yoke type with a bolted bonnet, featuring a solid wedge design for reliable sealing. Crafted with a 13% Chromium Stainless Steel (AISI-410) trim, it ensures durability and resistance to corrosion. The screwed female ends conform to BSPT threads, making it versatile for various piping systems.
Design and Construction
- Standards Compliance: BS-5352-1981 / API-602-1985 CI-800
- Type: Outside Screw and Yoke (OS&Y)
- Bonnet: Bolted for secure closure
- Trim Material: 13% Cr. SS (AISI-410)
- Wedge: Solid design for enhanced sealing
- Ends: Screwed female ends with BSPT threads
- Bore Options: Available in both standard and reduced bore designs
Key Features
- Enhanced Durability: Renewable 13% Cr. SS (AISI-410) body seat ring and wedge with at least 50 HB difference in hardness, ensuring long-lasting performance.
- Self-Aligning Gland: Bolted, two-piece gland design allows for easy alignment and maintenance.
- Back Seat Provision: Facilitates on-line replacement of gland packing under pressure when the valve is fully open, minimizing downtime.
- Deep Stuffing Box: Provides ample depth for effective sealing and extended packing life.
- User-Friendly Operation: Equipped with a sturdy handwheel for smooth and effortless valve operation.
Testing and Certification
- Body Test: Hydraulically tested to 207 Bar Gauge.
- Seat and Back Seat Test: Hydraulically tested to 152 Bar Gauge and air tested to 6.9 Bar Gauge.
- Certification: Supplied with IBR Test Certificate in Form III-C issued by The Director of Boilers, Punjab.
Optional Features
- Socket Weld Ends: Valves can also be supplied with socket weld ends upon request for enhanced adaptability.
