When it comes to controlling the flow of fluids in automation systems, solenoid valves are often the unsung heroes. Whether it’s in a massive industrial plant or in the coffee maker at your local café, these devices are everywhere. But what exactly are they, and why are they so widely used? In this blog post, we’ll dive deep into solenoid valves, explore their purpose, different types, use cases, and much more.
What is a Solenoid Valve?
A solenoid valve is an electromechanically-operated valve used to control the flow of fluids or gases. The term “solenoid” refers to the coil of wire that converts electrical energy into linear motion, which is then used to open or close the valve. Simply put, it is a valve that uses electricity to control fluid or gas flow.
Solenoid valves are prized for their reliability, precision, and versatility. Because they are electrically controlled, they can easily be integrated into various automation systems, offering straightforward control for complex processes.
Purpose of Solenoid Valves
The primary purpose of solenoid valves is to control the flow of media (such as air, water, oil, or steam) in a variety of applications. They act as a switch that can either open or shut off the flow as required. The ability to remotely control fluid flow is essential in systems where manual control is impractical or inefficient. Let’s break down some of the main purposes of solenoid valves:
- Flow Regulation: They regulate fluid flow in systems where accuracy is paramount.
- Automation: Solenoid valves can be remotely operated, providing seamless integration into automated systems.
- Safety: Solenoid valves serve as safety devices, quickly cutting off the flow in case of an emergency.
- Cost Efficiency: Since they require little power to operate, they are a cost-effective solution in many industrial applications.
How Do Solenoid Valves Work?
The heart of a solenoid valve is an electromagnet, known as the solenoid coil. When electricity passes through the coil, it creates a magnetic field, causing a plunger or piston to move, which either opens or closes the valve. The valve may be normally open (NO) or normally closed (NC) depending on the intended application:
- Normally Closed (NC): The valve is closed in its resting state, and opens when energized.
- Normally Open (NO): The valve is open in its resting state, and closes when energized.
Types of Solenoid Valves
1. Direct Acting Solenoid Valves
These valves are simple in operation. The electromagnetic force is directly used to open or close the valve without the need for additional pressure. They are usually used for applications involving small flow rates and low pressures.
2. Pilot Operated Solenoid Valves
Pilot-operated valves use system pressure to assist in valve operation, making them suitable for larger flows and higher pressures. They require a minimum upstream pressure to operate properly, making them ideal for larger and industrial-scale systems.
3. Two-Way Solenoid Valves
These are the most common type of solenoid valve with two ports: an inlet and an outlet. The valve can either be fully open or fully closed, used to start or stop the flow.
4. Three-Way Solenoid Valves
Three-way valves have three ports and are used to divert, mix, or distribute fluid flow. They are typically used in pneumatic systems where compressed air must be directed to different locations.
5. Four-Way Solenoid Valves
Four-way valves are commonly used in applications involving double-acting actuators, such as hydraulic or pneumatic systems, where two different directions of fluid flow need to be controlled.
Applications and Use Cases of Solenoid Valves in Industries
1. Automotive Industry
In automotive systems, solenoid valves are used in automatic transmissions, engine control units (ECUs), and fuel injection systems to ensure precision in fluid control.
2. Medical and Pharmaceutical Industry
Solenoid valves are utilized in medical devices such as oxygen concentrators, ventilators, and other life-support systems where precise fluid or gas control is crucial.
3. Oil and Gas Industry
These valves play an essential role in pipeline control systems, allowing for automated shutoff, ensuring safety, and regulating the flow of hydrocarbons.
4. HVAC Systems
In Heating, Ventilation, and Air Conditioning (HVAC), solenoid valves control refrigerant flow, ensuring that the systems function efficiently and respond effectively to temperature changes.
5. Food and Beverage Industry
Solenoid valves control liquid ingredients in automated food processing systems, ensuring accurate dosing and maintaining sanitary conditions during operations.
6. Industrial Automation

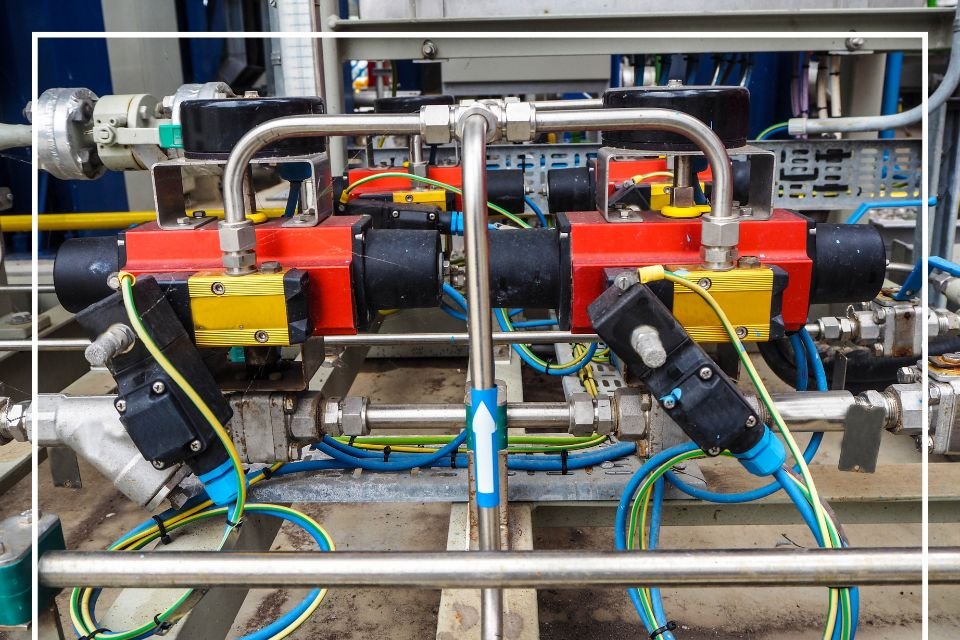

Factories and industrial plants use solenoid valves for robotics and pneumatic systems to accurately control the movement of machinery and automate entire production processes.
Advantages of Solenoid Valves
1. Fast Response Time
One major advantage is the quick response time. Solenoid valves can open and close in milliseconds, allowing for precise control.
2. High Reliability
Solenoid valves are generally robust, designed to perform reliably even in harsh environments, making them a popular choice for industrial applications.
3. Energy Efficiency
Since they require electricity only to actuate the valve (either open or close), energy consumption is kept to a minimum.
4. Compact Design
Their compact size makes them versatile for use in small devices or machinery, such as coffee machines or medical equipment.
FAQs About Solenoid Valves
1. What types of fluids can solenoid valves handle?
Solenoid valves can handle a variety of fluids, including air, water, oil, and even corrosive chemicals. The choice of material for the valve is essential to ensure compatibility with the specific type of fluid.
2. Are solenoid valves suitable for high-pressure applications?
Yes, pilot-operated solenoid valves are designed to handle high-pressure applications. Direct acting solenoid valves are more suitable for low-pressure environments.
3. Can solenoid valves be used outdoors?
Yes, solenoid valves can be used outdoors as long as they are rated for outdoor use and are installed in a protected environment to prevent moisture and dust damage.
4. What are some common issues with solenoid valves?
Common issues include coil burn-out due to over-voltage, plunger sticking due to wear or contaminants, and leakage due to damaged seals.
5. How do I choose the right solenoid valve for my application?
Selecting the right solenoid valve involves considering the type of fluid, pressure, flow rate, temperature, and application needs. Consulting the manufacturer’s specifications is a good place to start.
Conclusion
Solenoid valves are a vital part of many fluid control systems. Their ability to automate flow control using electric signals makes them highly adaptable across multiple industries—ranging from automotive to healthcare. Understanding the different types of solenoid valves and their specific use cases can help in choosing the right valve for your specific needs. Whether you’re designing an industrial automation line or just a simple plumbing project, solenoid valves have got you covered!
